The Magic FIR管理員： 發(fā)布時間：2017-10-30

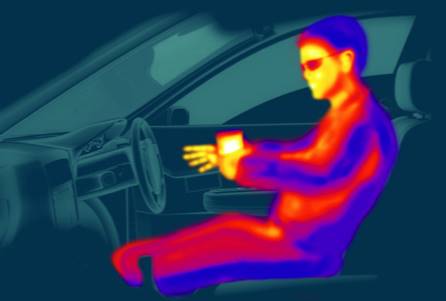

Like the pit viper, get access to thethermal world around you with the MLX90640. MLX90640-- Addresses growingdemands seen across numerous applications for thermal analysis. The sensor provides enhanced resolution while still occupyingan attractive price point. Primary applications for this device include people detection, fire prevention,building automation, lighting control, surveillance and air conditioningsystems. KEY FEATURES
?-40°Cto 85°C operational temperature range,allows deployment in difficult industrial environments ?Can measure object temperaturesbetween -40°C and300°C ?A typicaltarget object temperature accuracy of ±1°C,precision across its full measurement scale ?Noise equivalent temperature difference(NETD) ofjust 0.1K RMS at a 1Hz refresh rate, offers superiornoise performance ?Unlike microbolometer solutions, this sensor does notneed re-calibration to specific temperature requirementsensuring greater convenience and loweringoperational expense ?Two different field of view (FoV)options - standard 55°x35°version and a 110°x75° wide angle version ?Supplied in a 4-pin TO39 package, with the compactdimensions lowering the overall cost of thethermal imaging system ?I2Ccompatible digital interface, simplifyingintegration |
